Information

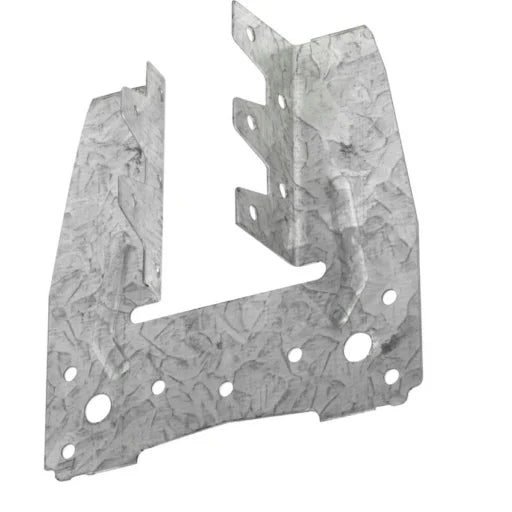

Galvanised Truss Clip is a high-strength steel connector designed to provide a secure and reliable fixing between timber trusses, rafters, joists and wall plates. Manufactured from durable galvanised steel, this truss clip delivers excellent corrosion resistance, making it ideal for both internal structural applications and protected external environments.
Product details:
- Width: 47mm
- Height: 110mm
A galvanised truss clip is primarily used to:

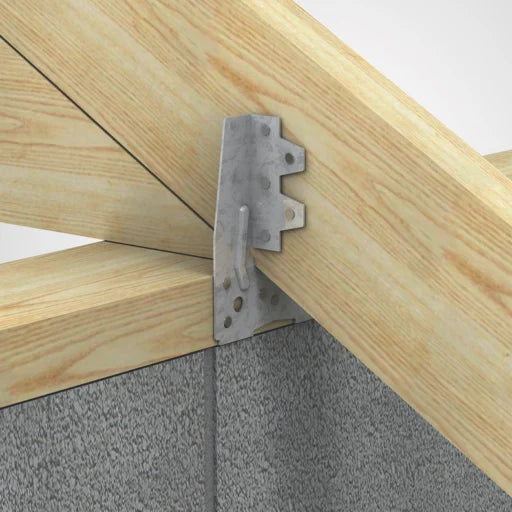

- Secure roof trusses to wall plates
- Tie rafters to timber frames
- Reinforce joist-to-beam connections
- Improve structural stability in timber frame construction
- Provide uplift resistance against wind loads
