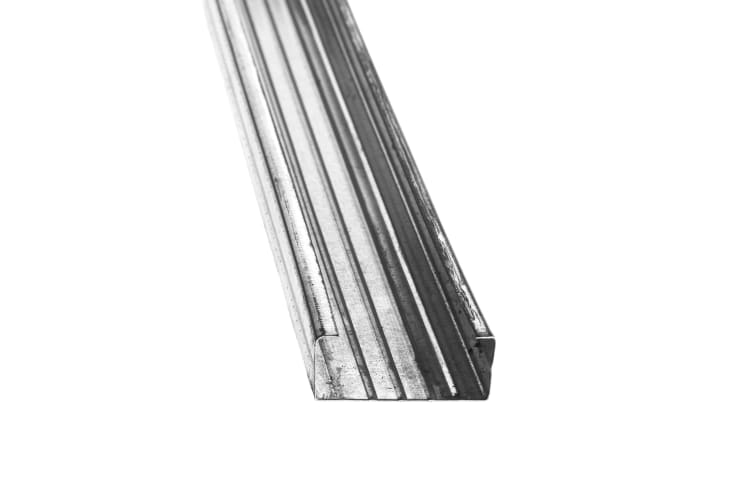

GL1 Lining Stud / Channel Section (Wall Lining), made from galvanised mild steel is used vertically for wall lining. It is unsuitable for use in an area where there is damp, wet or humid conditions.
The specifications of GL1 Lining Stud / Channel Section (Wall Lining) – 45mm Wide, 18mm deep flange and 0.4mm thick
Available in 2.4m, 2.7m, 3.0m and 3.6m.
-
Defined system role: Provides the vertical support framework within wall lining systems, forming the base structure for plasterboard linings.
-
Accurate wall preparation: Creates a straight, stable, and dimensionally consistent substrate for smooth wall finishes.
-
Galvanised steel construction: Strong, rigid, and corrosion-resistant for long-term performance in varied environments.
-
Dimensional stability: Maintains alignment without twisting or bowing, ensuring reliable framework integrity.
-
System integration: Used in combination with GL2 brackets, GL8 track, and associated channels as part of the complete Gypliner system.
Applications
-

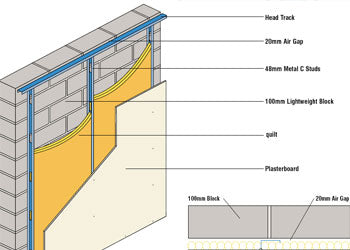

Gypliner wall linings: Primary vertical framework element for non-loadbearing drylining systems.
-
Plasterboard fixing: Provides a secure substrate for attaching plasterboard sheets in residential, commercial, or refurbishment projects.
-
Performance frameworks: Forms part of systems designed to enhance acoustic, thermal, and fire performance.
-
Refurbishment projects: Ideal for correcting irregular or poor-quality wall surfaces to prepare for decorative finishes.
Installation Guidance
-
Preparation: Fix GL8 track to floor and ceiling as base and head channels before inserting GL1 studs.
-
Stud positioning: Insert studs into the track and align with GL2 brackets fixed to the substrate at specified centres.
-
Alignment checks: Ensure studs are plumb and framework is square to achieve a straight and even wall surface.
-
Stud spacing: Position studs at standard centres (typically 600mm, or as specified) to align with plasterboard sheet sizes.
-
Service integration: Allow for cabling, insulation, or pipework within the cavity prior to boarding where required.
-
Handling care: Avoid distortion or over-cutting of studs to preserve dimensional accuracy and system performance.
