70mm Acoustic Hanger With Washer

(0)
£100.00 inc. VAT
In stock
Usually ships within 24 hours
Trusted Brand

Supported by our experience and dedication to customer satisfaction.

Free shipping
100% secure payments
Industry leading quality

Got questions?

Feel free to get in touch

Ask an expert!

Email +01902 961001

Product Description

Key Features

  • Effectively reduces noise transfer through a suspended ceiling system

  • Provides an “acoustic break” that significantly reduces noise nuisance

  • Strong and resilient design

  • Predrilled for ease of installation

  • Provides greater structural isolation when compared to standard soffit cleats i.e. MF12

Description

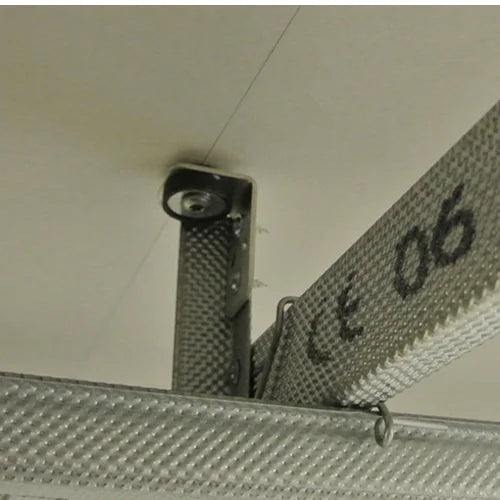

These 70mm acoustic hangers significantly improve the overall sound insulation of suspended ceilings that are installed to timber joists or concrete soffits.

These hangers are often used when providing a secondary ceiling directly below an initial one that is to remain in place.

The hangers can be used in combination with all manufacturer’s suspended ceiling systems including the British Gypsum CasoLine MF Ceiling System.

Applications

Acoustic hangers are a good choice where you are able to lose 100mm (or about 4 inches) of ceiling height.

Please Note: We advise a minimum 150mm void.

The Acoustic Hanger is installed to the base material using the correct combination of fastener and washer.

Please Note: Additional 25mm ‘penny’ washers (included) must be used in conjunction with the Acoustic Hangers.

A penetration of a minimum of 50mm should be achieved on the chosen substrate to ensure that the applied loading can be accommodated.

Specification

Product Data/Specification

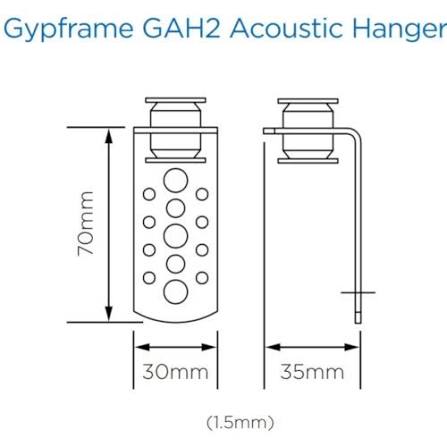

Dimensions:

L: 70mm x W: 30mm

The hanger is supplied with a 20mm vulcanised rubber isolator pre- fitted.

Typical Performance

3-5 dB increase in airborne sound.

Up to a 6 dB reduction in impact sound transfer.

Note: These figures are dependent on:

  1. The depth of the created void

  2. The inclusion of a minimum thickness of 100mm (45kg/m3 density) mineral fibre slab within the void

  3. When providing a double layer of Sound bloc quality plasterboard as the final ceiling finish
